Diplexers, Triplexers, Separators, and the Winegard G2

When I was using a DISH VIP722 receiver, I was introduced to the mystical world of diplexers, triplexers, and separators . . .

Basically, all three allow you to simplify satellite TV wiring by using one cable instead of two. That’s it.

But the devil’s in the details . . .

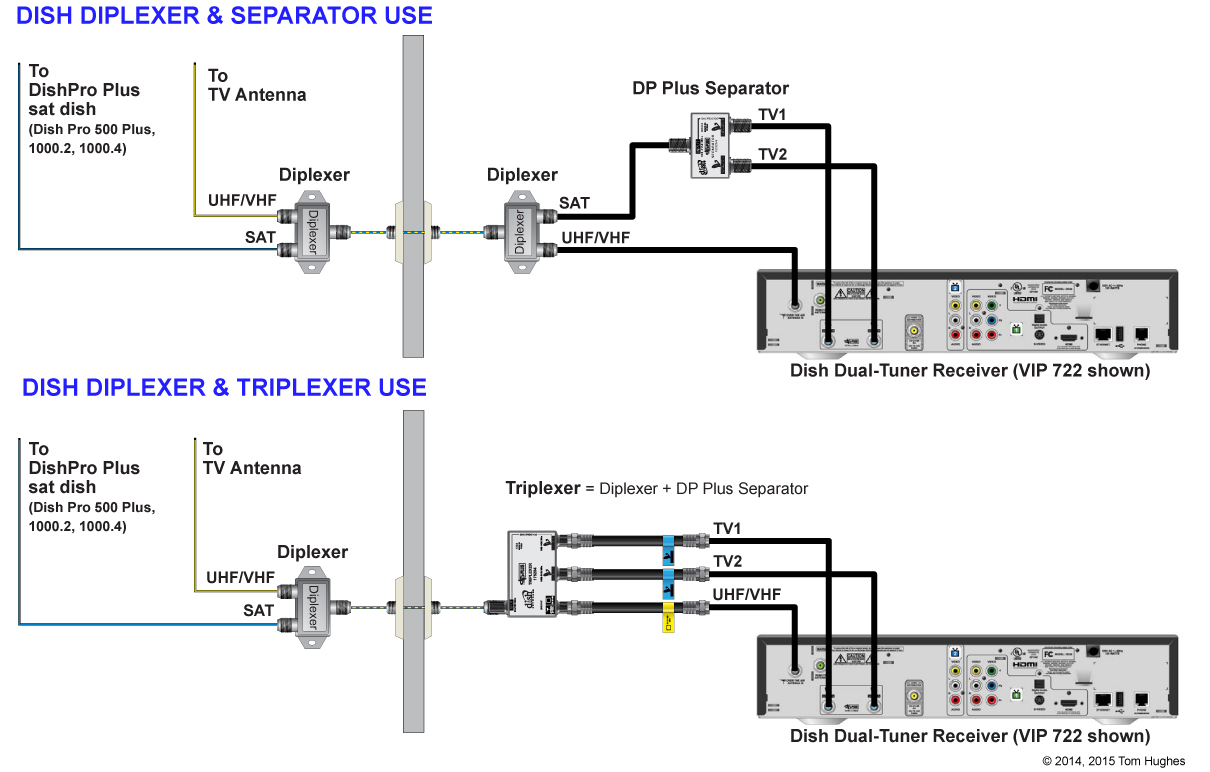

For example, Diplexers are used in pairs: the first Diplexer combines a Satellite signal with an Over-The-Air (VHF/UHF) or a cable TV signal.

. . . a second Diplexer un-combines the VHF/UHF (or cable TV) signals.

. . . a DISH Separator is used with DISH dual-tuner receivers, like the 722.

. . . and a DISH Triplexer is just a Diplexer and a DISH Separator in one.

Diplexers, Triplexers, and Separators

Diplexers, Triplexers, and Separators

WHAT DOES ALL THIS HAVE TO DO WITH A WINEGARD CARRYOUT G2?

Nothing, but that’s the point.

Diplexers, Triplexers, and Separators are NOT used with a Winegard G2.

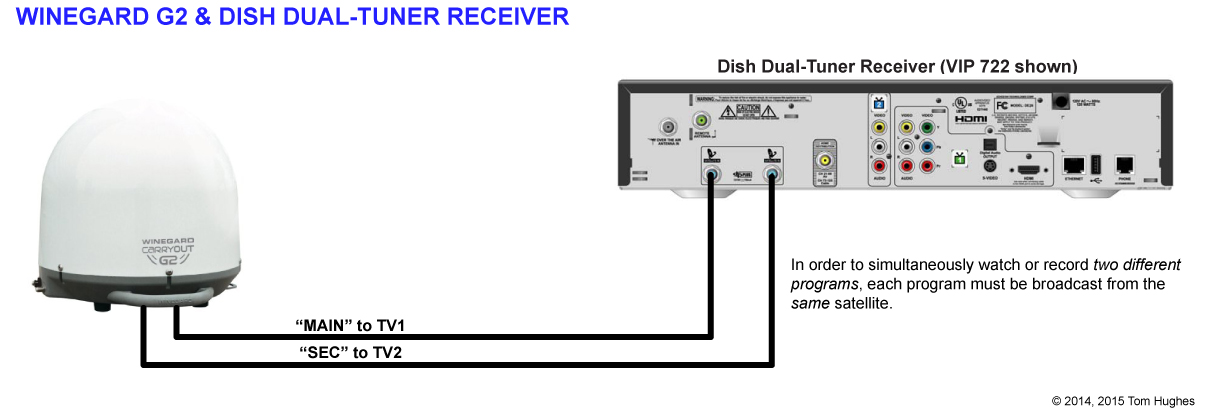

If you want to use a dual-tuner DISH receiver like a 722 with a G2, connect it like this . . .

Winegard G2 & DISH 722 Receiver

Winegard G2 & DISH 722 Receiver

One Comment Post a comment
  1. Craig #

    Are there instructions available for setting this up? Do you have to set the 722 to SW64 and run a check switch?

    May 27, 2017
